Handling Relations

API Platform Admin handles to-one and to-many relations automatically.

Thanks to the Schema.org support, you can easily display the name of a related resource instead of its IRI.

# Embedded Relations

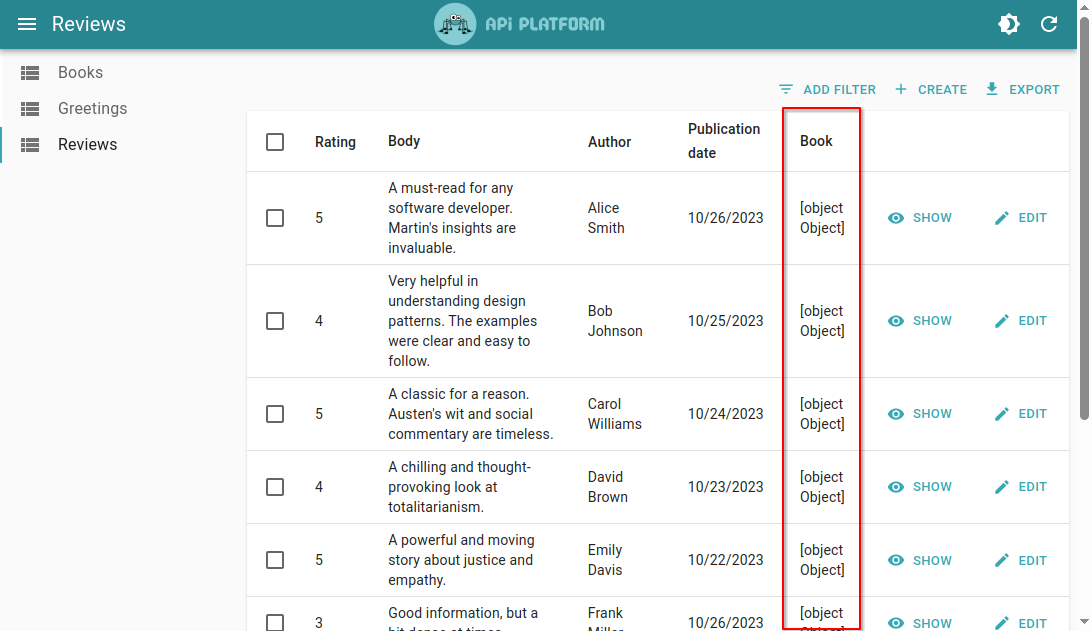

If a relation is an array of embeddeds or an embedded resource, the admin will keep them by default.

The embedded data will be displayed as text field and editable as text input: the admin cannot determine the fields present in it. To display the fields you want, see this section.

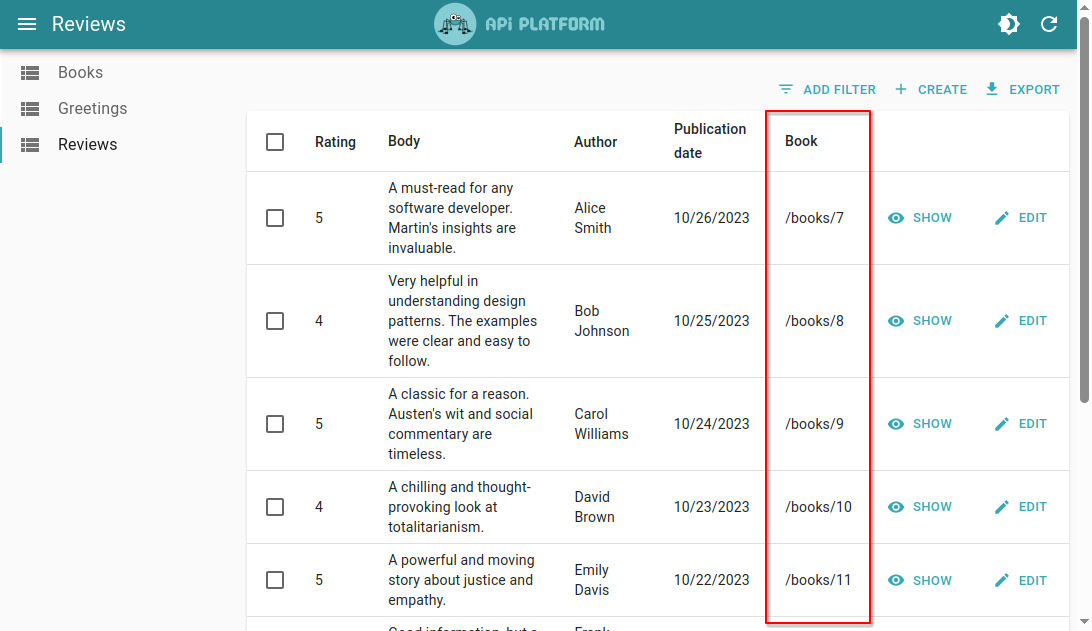

You can also ask the admin to automatically replace the embedded resources’ data by their IRI, by setting the useEmbedded parameter of the Hydra data provider to false. Embedded data is inserted to a local cache: it will not be necessary to make more requests if you reference some fields of the embedded resource later on.

// admin/src/App.js

import { HydraAdmin, fetchHydra, hydraDataProvider } from "@api-platform/admin";
import { parseHydraDocumentation } from "@api-platform/api-doc-parser";

const entrypoint = process.env.REACT_APP_API_ENTRYPOINT;

const dataProvider = hydraDataProvider({
    entrypoint,
    httpClient: fetchHydra,
    apiDocumentationParser: parseHydraDocumentation,
    mercure: true,
    useEmbedded: false,
});

export default () => (
  <HydraAdmin
      dataProvider={dataProvider}
      entrypoint={entrypoint}
  />
);

# Display a Field of an Embedded Relation

If you have an embedded relation and need to display a nested field, the code you need to write depends of the value of useEmbedded of the Hydra data provider.

If true (default behavior), you need to use the dot notation to display a field:

import {
  HydraAdmin,
  FieldGuesser,
  ListGuesser,
  ResourceGuesser
} from "@api-platform/admin";
import { TextField } from "react-admin";

const BooksList = (props) => (
  <ListGuesser {...props}>
    <FieldGuesser source="title" />
    {/* Use react-admin components directly when you want complex fields. */}
    <TextField label="Author first name" source="author.firstName" />
  </ListGuesser>
);

export default () => (
  <HydraAdmin entrypoint={process.env.REACT_APP_API_ENTRYPOINT}>
    <ResourceGuesser
      name="books"
      list={BooksList}
    />
  </HydraAdmin>
);

If useEmbedded is explicitly set to false, make sure you write the code as if the relation needs to be fetched as a reference.

In this case, you cannot use the dot separator to do so.

Note that you cannot edit the embedded data directly with this behavior.

For instance, if your API returns:

{
  "@context": "/contexts/Book",
  "@id": "/books",
  "@type": "Collection",
  "member": [
    {
      "@id": "/books/07b90597-542e-480b-a6bf-5db223c761aa",
      "@type": "https://schema.org/Book",
      "title": "War and Peace",
      "author": {
        "@id": "/authors/d7a133c1-689f-4083-8cfc-afa6d867f37d",
        "@type": "https://schema.org/Author",
        "firstName": "Leo",
        "lastName": "Tolstoi"
      }
    }
  ],
  "totalItems": 1
}

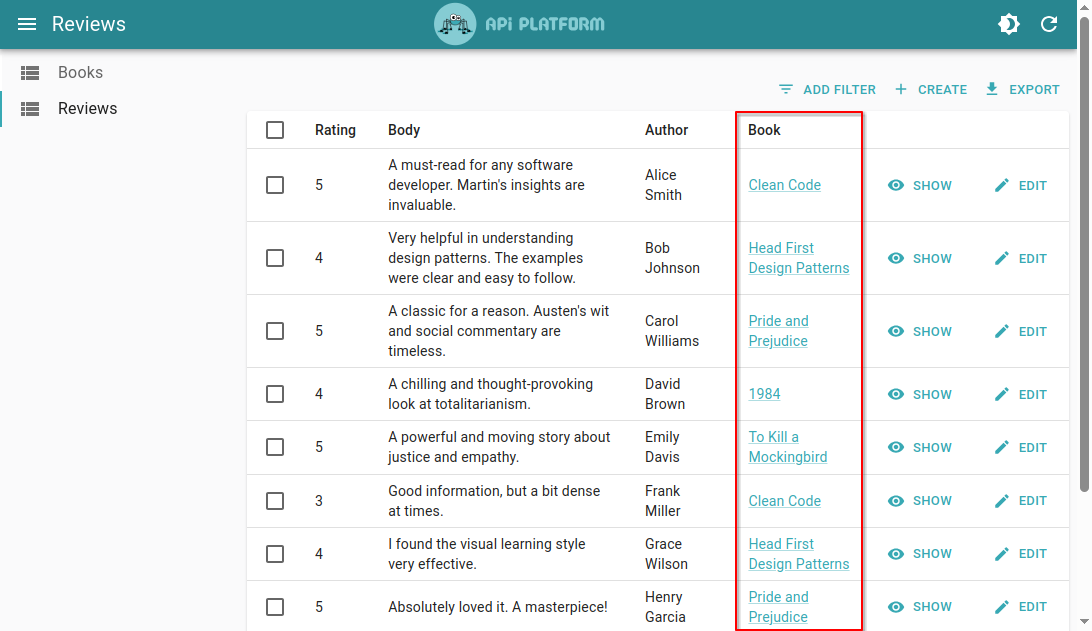

If you want to display the author first name in the list, you need to write the following code:

import {
  HydraAdmin,
  FieldGuesser,
  ListGuesser,
  ResourceGuesser
} from "@api-platform/admin";
import { ReferenceField, TextField } from "react-admin";

const BooksList = (props) => (
  <ListGuesser {...props}>
    <FieldGuesser source="title" />
    {/* Use react-admin components directly when you want complex fields. */}
    <ReferenceField label="Author first name" source="author" reference="authors">
      <TextField source="firstName" />
    </ReferenceField>
  </ListGuesser>
);

export default () => (
  <HydraAdmin entrypoint={process.env.REACT_APP_API_ENTRYPOINT}>
    <ResourceGuesser
      name="books"
      list={BooksList}
    />
    <ResourceGuesser name="authors" />
  </HydraAdmin>
);

# Using an Autocomplete Input for Relations

Let’s go one step further thanks to the customization capabilities of API Platform Admin by adding autocompletion support to form inputs for relations.

Let’s consider an API exposing Review and Book resources linked by a many-to-one relation (through the book property).

This API uses the following PHP code:

<?php
// api/src/Entity/Review.php
namespace App\Entity;

use ApiPlatform\Metadata\ApiResource;
use Doctrine\ORM\Mapping as ORM;

#[ORM\Entity]
#[ApiResource]
class Review
{
    #[ORM\Id, ORM\Column, ORM\GeneratedValue]
    public ?int $id = null;

    #[ORM\ManyToOne]
    public Book $book;
}

<?php
// api/src/Entity/Book.php
namespace App\Entity;

use ApiPlatform\Metadata\ApiFilter;
use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Doctrine\Orm\Filter\SearchFilter;
use Doctrine\Common\Collections\ArrayCollection;
use Doctrine\Common\Collections\Collection;
use Doctrine\ORM\Mapping as ORM;

#[ORM\Entity]
#[ApiResource]
class Book
{
    #[ORM\Id, ORM\Column, ORM\GeneratedValue]
    public ?int $id = null;

    #[ORM\Column]
    #[ApiFilter(SearchFilter::class, strategy: 'ipartial')]
    public string $title;

    #[ORM\OneToMany(targetEntity: Review::class, mappedBy: 'book')]
    public $reviews;

    public function __construct()
    {
        $this->reviews = new ArrayCollection();
    }
}

Notice the “partial search” filter on the title property of the Book resource class.

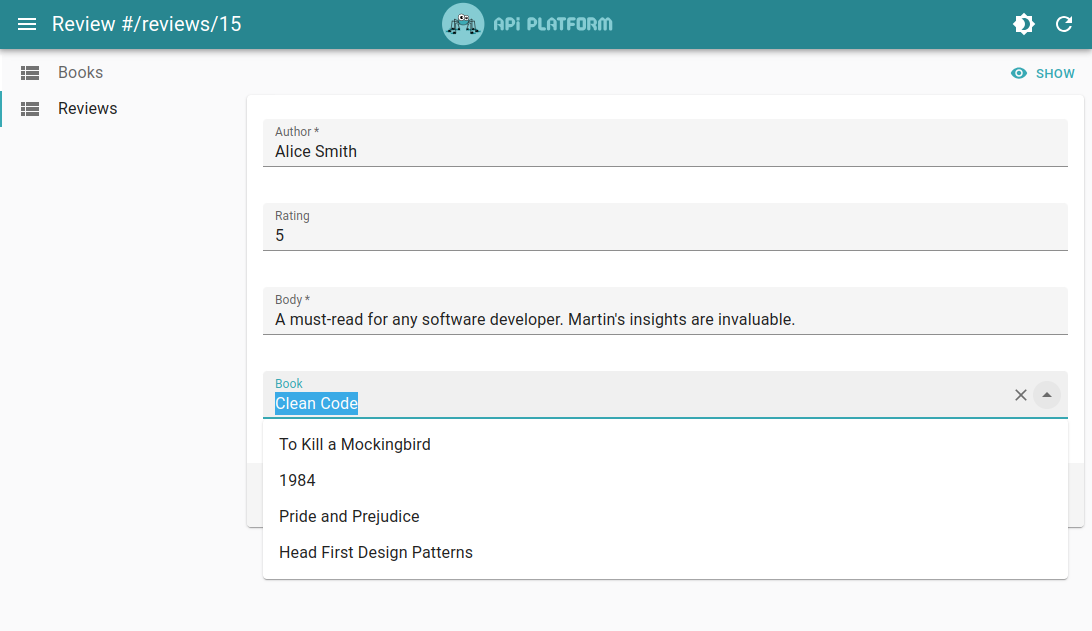

Now, let’s configure API Platform Admin to enable autocompletion for the relation selector:

import {
  HydraAdmin,
  ResourceGuesser,
  CreateGuesser,
  EditGuesser,
  InputGuesser
} from "@api-platform/admin";
import { ReferenceInput, AutocompleteInput } from "react-admin";

const ReviewsCreate = props => (
  <CreateGuesser {...props}>
    <InputGuesser source="author" />
    <ReferenceInput
      source="book"
      reference="books"
    >
      <AutocompleteInput
        filterToQuery={searchText => ({ title: searchText })}
        optionText="title"
        label="Books"
      />
    </ReferenceInput>

    <InputGuesser source="rating" />
    <InputGuesser source="body" />
    <InputGuesser source="publicationDate" />
  </CreateGuesser>
);

const ReviewsEdit = props => (
  <EditGuesser {...props}>
    <InputGuesser source="author" />

    <ReferenceInput
      source="book"
      reference="books"
    >
      <AutocompleteInput
        filterToQuery={searchText => ({ title: searchText })}
        optionText="title"
        label="Books"
      />
    </ReferenceInput>

    <InputGuesser source="rating" />
    <InputGuesser source="body" />
    <InputGuesser source="publicationDate" />
  </EditGuesser>
);

export default () => (
  <HydraAdmin entrypoint={process.env.REACT_APP_API_ENTRYPOINT}>
    <ResourceGuesser
      name="reviews"
      create={ReviewsCreate}
      edit={ReviewsEdit}
    />
  </HydraAdmin>
);

If the book is embedded into a review and if the useEmbedded parameter is true (default behavior), you need to change the ReferenceInput for the edit component:

import {
  HydraAdmin,
  ResourceGuesser,
  CreateGuesser,
  EditGuesser,
  InputGuesser
} from "@api-platform/admin";
import { ReferenceInput, AutocompleteInput } from "react-admin";

const ReviewsCreate = props => (
  <CreateGuesser {...props}>
    <InputGuesser source="author" />
    <ReferenceInput
      source="book"
      reference="books"
    >
      <AutocompleteInput
        filterToQuery={searchText => ({ title: searchText })}
        optionText="title"
        label="Books"
      />
    </ReferenceInput>

    <InputGuesser source="rating" />
    <InputGuesser source="body" />
    <InputGuesser source="publicationDate" />
  </CreateGuesser>
);

const ReviewsEdit = props => (
  <EditGuesser {...props}>
    <InputGuesser source="author" />

    <ReferenceInput
      source="book"
      reference="books"
    >
      <AutocompleteInput
        filterToQuery={searchText => ({ title: searchText })}
        format={v => v['@id'] || v}
        optionText="title"
        label="Books"
      />
    </ReferenceInput>

    <InputGuesser source="rating" />
    <InputGuesser source="body" />
    <InputGuesser source="publicationDate" />
  </EditGuesser>
);

export default () => (
  <HydraAdmin entrypoint={process.env.REACT_APP_API_ENTRYPOINT}>
    <ResourceGuesser
      name="reviews"
      create={ReviewsCreate}
      edit={ReviewsEdit}
    />
  </HydraAdmin>
);

The autocomplete field should now work properly!
