v3.0 OpenAPI Specification Support (formerly Swagger)

OpenAPI Specification Support (formerly Swagger)

Table of Contents

API Platform natively support the OpenAPI API specification format.

Screenshot

OpenAPI screencast
Watch the OpenAPI screencast

The specification of the API is available at the /docs.json path. By default, OpenAPI v3 is used. You can also get an OpenAPI v3-compliant version thanks to the spec_version query parameter: /docs.json?spec_version=3

It also integrates a customized version of Swagger UI and ReDoc, some nice tools to display the API documentation in a user friendly way.

# Using the OpenAPI Command

You can also dump an OpenAPI specification for your API.

OpenAPI, JSON format:

docker compose exec php \
    bin/console api:openapi:export

OpenAPI, YAML format:

docker compose exec php \
    bin/console api:openapi:export --yaml

Create a file containing the specification:

docker compose exec php \
    bin/console api:openapi:export --output=swagger_docs.json

If you want to use the old OpenAPI v2 (Swagger) JSON format, use:

docker compose exec php \
    bin/console api:swagger:export

# Overriding the OpenAPI Specification

Symfony allows to decorate services, here we need to decorate api_platform.openapi.factory.

In the following example, we will see how to override the title of the Swagger documentation and add a custom filter for the GET operation of /foos path.

# api/config/services.yaml
    App\OpenApi\OpenApiFactory:
        decorates: 'api_platform.openapi.factory'
        arguments: [ '@App\OpenApi\OpenApiFactory.inner' ]
        autoconfigure: false
<?php
namespace App\OpenApi;

use ApiPlatform\OpenApi\Factory\OpenApiFactoryInterface;
use ApiPlatform\OpenApi\OpenApi;
use ApiPlatform\OpenApi\Model;

class OpenApiFactory implements OpenApiFactoryInterface
{
    private $decorated;

    public function __construct(OpenApiFactoryInterface $decorated)
    {
        $this->decorated = $decorated;
    }

    public function __invoke(array $context = []): OpenApi
    {
        $openApi = $this->decorated->__invoke($context);
        $pathItem = $openApi->getPaths()->getPath('/api/grumpy_pizzas/{id}');
        $operation = $pathItem->getGet();

        $openApi->getPaths()->addPath('/api/grumpy_pizzas/{id}', $pathItem->withGet(
            $operation->withParameters(array_merge(
                $operation->getParameters(),
                [new Model\Parameter('fields', 'query', 'Fields to remove of the output')]
            ))
        ));

        $openApi = $openApi->withInfo((new Model\Info('New Title', 'v2', 'Description of my custom API'))->withExtensionProperty('info-key', 'Info value'));
        $openApi = $openApi->withExtensionProperty('key', 'Custom x-key value');
        $openApi = $openApi->withExtensionProperty('x-value', 'Custom x-value value');

        return $openApi;
    }
}

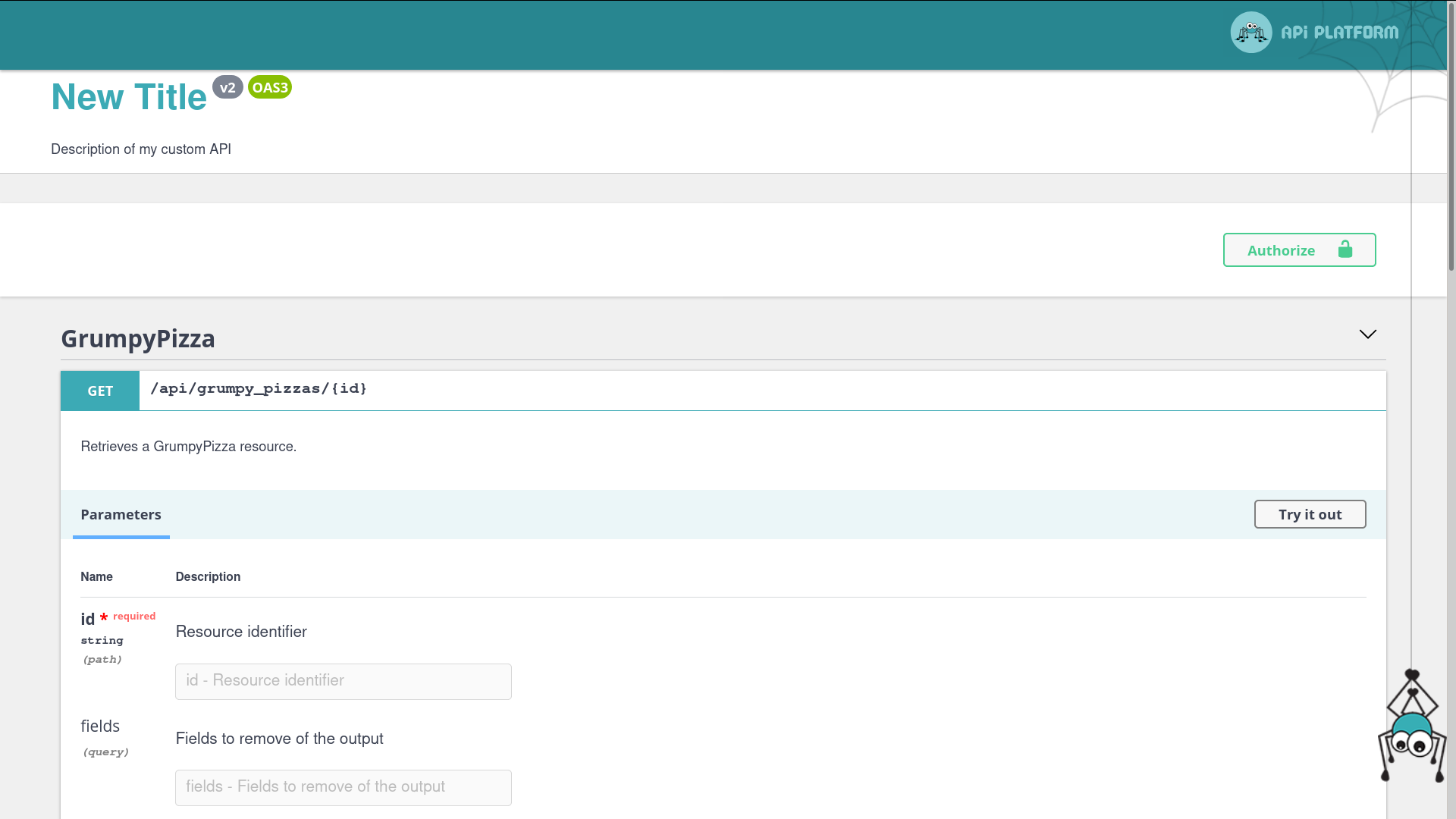

The impact on the swagger-ui is the following:

Swagger UI

# Using the OpenAPI and Swagger Contexts

Sometimes you may want to change the information included in your OpenAPI documentation. The following configuration will give you total control over your OpenAPI definitions:

<?php
// api/src/Entity/Product.php
namespace App\Entity;

use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Metadata\ApiProperty;
use Doctrine\ORM\Mapping as ORM;
use Symfony\Component\Validator\Constraints as Assert;

#[ORM\Entity]
#[ApiResource]
class Product // The class name will be used to name exposed resources
{
    #[ORM\Id, ORM\Column, ORM\GeneratedValue]
    private ?int $id = null;

    /**
     * @param string $name A name property - this description will be available in the API documentation too.
     *
     */
    #[ORM\Column]
    #[Assert\NotBlank]
    #[ApiProperty(
        openapiContext: [
            'type' => 'string',
            'enum' => ['one', 'two'],
            'example' => 'one'
        ]
    )]
    public string $name;

    #[ORM\Column(type: "datetime")]
    #[Assert\DateTime]
    #[ApiProperty(
        openapiContext: [
            'type' => 'string',
            'format' => 'date-time'
        ]
    )]
    public $timestamp;

    // ...
}
# api/config/api_platform/resources.yaml
resources:
    App\Entity\Product:
      properties:
        name:
          attributes:
            openapi_context:
              type: string
              enum: ['one', 'two']
              example: one
        timestamp:
          attributes:
            openapi_context:
              type: string
              format: date-time
<?xml version="1.0" encoding="UTF-8" ?>
<properties xmlns="https://api-platform.com/schema/metadata/properties-3.0"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="https://api-platform.com/schema/metadata/properties-3.0
           https://api-platform.com/schema/metadata/properties-3.0.xsd">
    <property resource="App\Entity\Product" name="name">
        <openapiContext>
            <values>
                <value name="type">type</value>
                <value name="enum">
                    <values>
                        <value>one</value>
                        <value>two</value>
                    </values>
                </value>
                <value name="example">one</value>
            </values>
        </openapiContext>
    </property>
    <property resource="App\Entity\Product" name="timestamp">
        <openapiContext>
            <values>
                <value name="type">string</value>
                <value name="format">date-time</value>
            </values>
        </openapiContext>
    </property>
</properties>

This will produce the following Swagger documentation:

"components": {
    "schemas": {
        "GrumpyPizza:jsonld": {
            "type": "object",
            "description": "",
            "properties": {
                "@context": {
                    "readOnly": true,
                    "type": "string"
                },
                "@id": {
                    "readOnly": true,
                    "type": "string"
                },
                "@type": {
                    "readOnly": true,
                    "type": "string"
                },
                "timestamp": {
                    "type": "string",
                    "format": "date-time"
                },
                "id": {
                    "readOnly": true,
                    "type": "integer"
                },
                "name": {
                    "type": "string",
                    "enum": [
                        "one",
                        "two"
                    ],
                    "example": "one"
                }
            }
        }
    }
}

To pass a context to the OpenAPI v2 generator, use the swaggerContext attribute (notice the prefix: swagger instead of openapi).

# Disabling an Operation From OpenAPI Documentation

Sometimes you may want to disable an operation from the OpenAPI documentation, for example to not exposing it. Using the openapi boolean option disables this operation from the OpenAPI documentation:

<?php
// api/src/Entity/Product.php
namespace App\Entity;

use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Metadata\GetCollection;

#[ApiResource(
    operations: [
        new GetCollection(openapi: false)
    ]
)]
class Product
{
    // ...
}
# api/config/api_platform/resources.yaml
resources:
    App\Entity\Product:
        operations:
            ApiPlatform\Metadata\GetCollection:
                openapi: false
<?xml version="1.0" encoding="UTF-8" ?>
<!-- api/config/api_platform/resources.xml -->

<resources xmlns="https://api-platform.com/schema/metadata/resources-3.0"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="https://api-platform.com/schema/metadata/resources-3.0
           https://api-platform.com/schema/metadata/resources-3.0.xsd">
    <resource class="App\Entity\Product">
        <operations>
            <operation class="ApiPlatform\Metadata\GetCollection" openapi="false" />
        </operations>
    </resource>
</resources>

Note: as your route is not exposed, you may want to return a HTTP 404 if it’s called. Prefer using the NotExposedAction controller instead.

# Changing the Name of a Definition

API Platform generates a definition name based on the serializer groups defined in the (de)normalizationContext. It’s possible to override the name thanks to the swagger_definition_name option:

use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Metadata\Post;

#[ApiResource]
#[Post(denormalizationContext: ['groups' => ['user:read'], 'swagger_definition_name' => 'Read'])]
class User
{
    // ...
}

It’s also possible to re-use the (de)normalizationContext:

use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Metadata\Post;

#[ApiResource]
#[Post(denormalizationContext: [User::API_WRITE])]
class User
{
    const API_WRITE = [
        'groups' => ['user:read'],
        'swagger_definition_name' => 'Read',
    ];
}

# Changing Operations in the OpenAPI Documentation

You also have full control over both built-in and custom operations documentation.

<?php
// api/src/Entity/Rabbit.php
namespace App\Entity;

use ApiPlatform\Metadata\ApiResource;
use ApiPlatform\Metadata\Post;
use App\Controller\RandomRabbit;

#[ApiResource]
#[Post(
    name: 'create_rabbit',
    uriTemplate: '/rabbit/create',
    controller: RandomRabbit::class,
    openapiContext: [
        'summary' => 'Create a rabbit picture',
        'description' => '# Pop a great rabbit picture by color!\n\n![A great rabbit](https://rabbit.org/graphics/fun/netbunnies/jellybean1-brennan1.jpg)',
        'requestBody' => [
            'content' => [
                'application/json' => [
                    'schema' => [
                        'type' => 'object',
                        'properties' => [
                            'name' => ['type' => 'string'],
                            'description' => ['type' => 'string']
                        ]
                    ],
                    'example' => [
                        'name' => 'Mr. Rabbit',
                        'description' => 'Pink Rabbit'
                    ]
                ]
            ]
        ]
    ]
)]
class Rabbit
{
    // ...
}
resources:
  App\Entity\Rabbit:
    operations:
      create_rabbit:
        class: ApiPlatform\Metadata\Post
        path: '/rabbit/create'
        controller: App\Controller\RandomRabbit
        openapiContext:
          summary: Random rabbit picture
          description: >
            # Pop a great rabbit picture by color!

            ![A great rabbit](https://rabbit.org/graphics/fun/netbunnies/jellybean1-brennan1.jpg)

          requestBody:
            content:
              application/json:
                schema:
                  type: object
                  properties:
                    name: { type: string }
                    description: { type: string }
                example:
                  name: Mr. Rabbit
                  description: Pink rabbit
<?xml version="1.0" encoding="UTF-8" ?>
<resources xmlns="https://api-platform.com/schema/metadata/resources-3.0"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="https://api-platform.com/schema/metadata/resources-3.0
        https://api-platform.com/schema/metadata/resources-3.0.xsd">
    <resource class="App\Entity\Rabbit">
        <operations>
            <operation class="ApiPlatform\Metadata\Post" name="create_rabbit" uriTemplate="/rabbit/create"
                       controller="App\Controller\RandomRabbit">
                <openapiContext>
                    <values>
                        <value name="summary">Create a rabbit picture </value>
                        <value name="description"># Pop a great rabbit picture by color!!

    ![A great rabbit](https://rabbit.org/graphics/fun/netbunnies/jellybean1-brennan1.jpg)</value>
                        <value name="content">
                            <values>
                                <value name="application/json">
                                    <values>
                                        <value name="schema">
                                            <values>
                                                <value name="type">object</value>
                                                <value name="properties">
                                                    <values>
                                                        <value name="name">
                                                            <values>
                                                                <value name="type">string</value>
                                                            </values>
                                                        </value>
                                                        <value name="description">
                                                            <values>
                                                                <value name="type">string</value>
                                                            </values>
                                                        </value>
                                                    </values>
                                                </value>
                                            </values>
                                        </value>
                                    </values>
                                </value>
                            </values>
                        </value>
                    </values>
                </openapiContext>
            </operation>
        </operations>
    </resource>
</resources>

Impact on Swagger UI

# Disabling Swagger UI or ReDoc

To disable Swagger UI (ReDoc will be shown by default):

# api/config/packages/api_platform.yaml
api_platform:
    # ...
    enable_swagger_ui: false

To disable ReDoc:

# api/config/packages/api_platform.yaml
api_platform:
    # ...
    enable_re_doc: false

# Changing the Location of Swagger UI

By default, the Swagger UI is available at the API location (when the HTML format is asked) and at the route /docs.

You may want to change its route and/or disable it at the API location.

# Changing the Route

Manually register the Swagger UI controller:

# app/config/routes.yaml
api_doc:
    path: /api_documentation
    controller: api_platform.swagger_ui.action

Change /api_documentation to the URI you wish Swagger UI to be accessible on.

# Disabling Swagger UI at the API Location

To disable the Swagger UI at the API location, disable both Swagger UI and ReDoc:

# api/config/packages/api_platform.yaml
api_platform:
    # ...
    enable_swagger_ui: false
    enable_re_doc: false

If you have manually registered the Swagger UI controller, the Swagger UI will still be accessible at the route you have chosen.

# Using a custom Asset Package in Swagger UI

Sometimes you may want to use a different Asset Package for the Swagger UI. In this way you’ll have more fine-grained control over the asset URL generations. This is useful i.e. if you want to use different base path, base URL or asset versioning strategy.

Specify a custom asset package name:

# config/packages/api_platform.yaml
api_platform:
    asset_package: 'api_platform'

Set or override asset properties per package:

# config/packages/framework.yaml
framework:
    # ...
    assets:
        base_path: '/custom_base_path' # the default
        packages:
            api_platform:
                base_path: '/'

# Overriding the UI Template

As described in the Symfony documentation, it’s possible to override the Twig template that loads Swagger UI and renders the documentation:

{# templates/bundles/ApiPlatformBundle/SwaggerUi/index.html.twig #}
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>{% if title %}{{ title }} {% endif %}My custom template</title>
    {# ... #}
</html>

You may want to copy the one shipped with API Platform and customize it.

# Compatibility Layer with Amazon API Gateway

AWS API Gateway supports OpenAPI partially, but it requires some changes. API Platform provides a way to be compatible with Amazon API Gateway.

To enable API Gateway compatibility on your OpenAPI docs, add api_gateway=true as query parameter: http://www.example.com/docs.json?api_gateway=true. The flag --api-gateway is also available through the command-line.

# OAuth

If you implemented OAuth on your API, you should configure OpenApi’s authorization using API Platform’s configuration:

api_platform:
    oauth:
        # To enable or disable OAuth.
        enabled: false

        # The OAuth client ID.
        clientId: ''

        # The OAuth client secret.
        clientSecret: ''

        # The OAuth type.
        type: 'oauth2'

        # The OAuth flow grant type.
        flow: 'application'

        # The OAuth token url.
        tokenUrl: '/oauth/v2/token'

        # The OAuth authentication url.
        authorizationUrl: '/oauth/v2/auth'

        # The OAuth scopes.
        scopes: []

Note that clientId and clientSecret are being used by the SwaggerUI if enabled.

# Configure the OAuth Scopes Option

The api_platform.oauth.scopes option requires an array value with the scopes name and description. For example:

api_platform:
    oauth:
        scopes:
            profile: "This scope value requests access to the End-User's default profile Claims, which are: name, family_name, given_name, middle_name, nickname, preferred_username, profile, picture, website, gender, birthdate, zoneinfo, locale, and updated_at."
            email: "This scope value requests access to the email and email_verified Claims."
            address: "This scope value requests access to the address Claim."
            phone: "This scope value requests access to the phone_number and phone_number_verified Claims."

Note: if you’re using an OpenID Connect server (such as Keycloak or Auth0), the openid scope must be set according to the OpenID Connect specification.

# Info Object

The info object provides metadata about the API like licensing information or a contact. You can specify this information using API Platform’s configuration:

api_platform:

    # The title of the API.
    title: 'API title'

    # The description of the API.
    description: 'API description'

    # The version of the API.
    version: '0.0.0'

    openapi:
        # The contact information for the exposed API.
        contact:
            # The identifying name of the contact person/organization.
            name:
            # The URL pointing to the contact information. MUST be in the format of a URL.
            url:
            # The email address of the contact person/organization. MUST be in the format of an email address.
            email:
        # A URL to the Terms of Service for the API. MUST be in the format of a URL.
        termsOfService:
        # The license information for the exposed API.
        license:
            # The license name used for the API.
            name:
            # URL to the license used for the API. MUST be in the format of a URL.
            url:

You can also help us improve the documentation of this page.

Made with love by

Les-Tilleuls.coop can help you design and develop your APIs and web projects, and train your teams in API Platform, Symfony, Next.js, Kubernetes and a wide range of other technologies.

Learn more

Copyright © 2023 Kévin Dunglas

Sponsored by Les-Tilleuls.coop

Resources

LogosWallpapersColouring webby
HelpNeed help?ScreencastsStack OverflowSlack
CommunityOverviewEventsAPI Platform ConferenceContributorsHow to contribute

Code licensed under MIT, documentation under CC by 3.0

Enterprise subscriptionSecurity PolicyTrademark Policy
